All-Weather-Tyres - just in Time

Two weeks ago I had decided that it would be a good idea to get all-year-tyres for MrPercy. I am planning to take the vehicle to areas where there might be snow and ice. The tyres which were now mounted were still ok, but would eventually need to be replaced. So I went once again to MyTyres and ordered online 4 new tyres. For this particular size there were only 4 brands to choose from. And only one had reasonable review results, so I chose the Vredestein Quatrac 3. Unfortunately not very cheap... but I hope this tyre will proof itself worth the expense.

Interesting: the tyres ordered through MyTyres are shipped from Germany, as in the UK it is basically almost impossible to get a choice of winter or all-season tyres. The shipping is included in the price, they ship the set of 4 tyres to a garage of my choice, which then do the fitting at a special fixed price (£ 15 per tyre).

Window Isolation

From B&Q I had bought a roll of metal foil insulating bubble wrap. This is used for thermal insulation in buildings, but I want to make window shades from it, for overnight stays and for blocking the windows. I started with the driver-side rear back door window. Also I had already fixed the isolation of the wardrobe which meant that part of that right rear side window would always be covered.

Trouble with China

In recent weeks I had bought many items on eBay, and many of them were available by sellers in Hongkong, Taiwan, Singapore, and China. Their prices are just without competition - even with the shipping the items are so much cheaper than anywhere in the UK. So far almost everything arrived ok, with sometimes very fast, sometimes a bit slower delivery. But then I hit two "rotten apples": I got sent two completely wrong items. Instead of a CCTV recorder, I got an automatic fish pond feeder. And instead of 5 cameras, I only got 5 little miniature camera stands. Maybe it is the nature of the objects that I have ordered - could it be that cameras and video equipment are somewhat suspect? All sellers on eBay display their customers satisfaction rates. Most are 100%, or maybe 99.8%. The ones that did those "mistakes" sending me wrong stuff had an approval rating of "only" 98.5%. I had thought that this was not much of an issue... but apparently it is. They promised now to send me the correct items. Let's see.

Battery Box

In order to "seal" the battery box, I bought a thick rubber seal which I then placed around the edges. When the rear doors are closed, there is still a gap between the seal and the doors which I plan to close with some additional foam. This will not be really tightly sealed... but will be much better than the compartment where the battery had been before: under the wooden wardrobe.

First Long-Distance Drive - and Fixing the Noise

I had to drive to Stansted Airport, to catch a flight. A great opportunity for some long-distance driving on the motorway, driving through the rainy night. But I noticed again immediately that strange annoying noise: it began already at 40 mph, then got louder with speed, and above 50 mph was note bearable. I did slow down, let trucks and lorries pass me, and was wondering what that noise was about. It seemed that the whole vehicle was vibrating: the window pillars next do the driver door had this inherent vibration too, which I felt when I touched them. Was it something in the drive train? Rolling along in "N", and the noise did not disappear.

I stopped several times to check, looked at the tyres, tried to identify the source of that loud resonance noise. Then, at a stop at a McDonalds, I suddenly realised what the reason was: the roof bars. Inherently, those bars seemed to cause some noise. And the fact that one of the bars was only attached by two screws did cause that loud vibration. The bars only came with 6 screws total. I stuffed some bubble wrap into the space between the bars and the vehicle roof, and when I drove again, the noise was much subdued. Still a bit, but I finally could drive with 70 mph without my ears falling off.

Then I had a well-deserved break at 3am - and had my first meal eating on the table within MrPercy.

Strange Noise...

Since yesterday, after several activities, there is now a noise coming from the rear left (passenger) side. It appears to be from the sliding door, but it could also be from further behind. It is a kind of resonance vibration, which starts around 40mph, but then also remains at lower speeds.

I did check several things to get rid of this noise, without success: removed the battery box, removed a few of the items I had placed in various locations. I suspect it comes from the wooden frame for the sofa/bed: the cover boards on top appear a bit out of shape, bent, and they do not sit very tightly on the frame. My next measure will be to put some kind of dampening there. Hopefully this goes away, because this noise is quite annoying.

More Work Done

The battery box coincidentally fits exactly between the bars of the structure in the back. So I put it there and attached it with screws on the top and on the right side. First I wanted to put it to the very left, so that it would be covered completely by the left door. Then I decided it would be better to have it at the right-most end of the rack, so that it is closer to the "electricity distribution center" under the wardrobe at the right side, and that the cables would be shorter.

Attached new handles at the wooden doors of all furniture. Reworked the glove compartment closure and added a second catch. Placed the TV-antenna outside in the back, cable just going through the rear door seals. Hid all the cables coming from the central locking control box. Bought strong 25A cables for the battery connection.

Realised that the electric connection of the relay TEC3M is incorrectly done. At the moment it would always use both batteries, and any power consumption at the leisure battery would also drain the main battery. Which moron did the cabling of this relay?

Cleaned a bit the vehicle.

Hiding the Cables

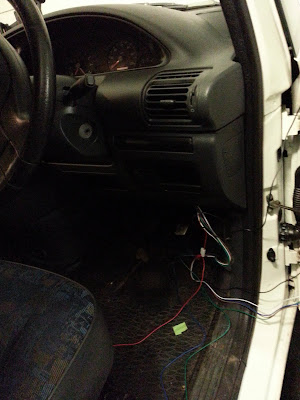

The central lock mechanism for the two front doors works great! Except that until yesterday I had all the cables spread either on the dashboard or in the foot area. Which did not look very appealing nor was it safe to have those cables near the foot pedals, where they could get stuck or my feet could get entangled.

During this week, I did make several attempts to affix these cables somehow beneath the dashboard. I was able to find a place where I could screw on the control box, though with one screw only. I tried then to affix the cables with isolating tape. However, the tape did not stick anywhere on the dashboard plastic. I got black Duck Tape. The extra strong version. But neither this tape was able to get attached anywhere! It appears that Peugeot has coated every plastic surface with a kind of Teflon anti-stick coating, so that no dirt would get stuck. I was not able to find any place where the tape would hold. So the only choice for affixing anything would have to be mechanical. Fortunately I found a few holes and loops under the dashboard where I could wind the sticky tape through - and then I was able to wrap it around the central locking cables and let them hang from these fixtures. I did this along the underside of the dashboard from right to left, and so the cables for the central locking system are now hidden.

The final challenge was to get somewhere an access to a +12V connection from the battery. The obvious option was the cigarette lighter, which I had used temporarily with a plug until now. In contrast to many other vehicles, this lighter is powered even if the ignition is off. I tried to pull the lighter out, but it was affixed in a very non-obvious way - I was not able to get it out from the dashboard. So I had to look for other choices. The fuse box behind the glove compartment would be an option to get some electric power, but there appeared no usable slot nor any +12V cable that I could easily use. All is tightly packed, with sealed cable trees and snug sitting plugs. Another possibility would be the radio. I took it out and was able to connect a cable to the +12V "memory" input line, which was constantly powered even when the ignition was off. Now I had to find a way to get the cable from the radio down to the central locking control box. This was again quite difficult: the whole dashboard appears to be very tightly packed. No free space behind it. And the panels cannot be dismantled in any obvious way: I saw a few screws here and there, but when I unscrewed them, then there were a few more hidden screws which kept everything still together. A real nightmare! And I was not willing to dismantle all the parts of the dashboard just for getting one single cable through. Finally I found a duct at the left side of the radio. I pushed the cable through, and indeed it arrived below in the passenger foot area. Now just attaching the final connection, and the central locking is now functioning, with all the cabling hidden.

Ordered Items Arrive

In recent week I had conducted a shopping spree on eBay. Hongkong, China, Taiwan. The first things now arrived: - hard to get roof bars for the Expert van, battery box, reverse aid, 12V switch panel.

First I fixed the roof bars. Two screws were missing, and one could not completely be fastened. These bars are very heavy duty, but also are a bit bulky. I would have preferred something more "consumer" friendly.

Then I fixed the rear wardrobe insulation and view blocking. Took the battery box and mounted it in the rear of the vehicle. It fits exactly in the space between two horizontal wooden bars. Added a poster.

Passenger Door now also Lockable

After installing the central locking mechanism at the driver side door, the next step was to install the same at the passenger side door. Some problems: the door panel was very hard to remove. There are a total of 5 screws, but a number of additional hidden fasteners which keep the panel attached to the door frame. What were the technical designers at Peugeot thinking when they mare this? I kept working, with the panel still partially attached - had to bend it so that I could use the screw driver. Finally managed to affix the motor and the rods - works fine. Now two doors have central locking.

Next step is to hide the cabling and the control box.

A Day in the Dales

Finally something else then city traffic. I took the van on a ride into the Yorkshire Dales. Drove fine, no problems.

Finally - the Car Can Be Locked!

A very important milestone today: I mounted the first of the central locking motors into the driver's door, and now I can at least lock one of the 4 doors from the outside, by remote control. It was not a very easy job: first I had to get a set of new tools, because the door panel screws had this strange hexagonal head. Then once the panel was (partially) removed (I was not able to remove the panel completely, it appeared to be stuck at one screw), the difficulty arose where to place the motor.

It should be placed so that the vertical motion would be in parallel to the door closing knob. And it should not block the sliding door window. Finally I spotted a suitable place, very close to the top. Affixed the metal holding bar, then attached the motor to it. Then bent the brass rod so that it would align properly with the door knob, and then attached the rod to the closing mechanism. A short test with the electrics - and it worked! Next was to manage the cables - a set of 5 cables needs to go from the motor to the central processing unit. I first wanted to use the protected duct between the car and the door, but I was not able to reach it: removed one of the panels in the driver foot area, but still did not get access to this duct. It appeared that there would be a special set of plugs needed. So instead of using this, I left the cables just dangling by themselves. Attached them with tape inside the door, so that they would not move about. For a temporary solution, I used the +12V from the cigarette lighter to power the box. It got dark towards the evening, and I had no time anymore to fiddle with finding the proper +12V lead for connecting it properly to the car fuse box. In any case, it needs power also when the ignition is off.

The next tasks will be: properly attaching the control box, hiding the cables, and installing the 2nd motor at the passenger door.

And now, since the car is finally properly locked all the time, I can actually make this blog public - no danger of anyone abusing the knowledge of my up to now always partially locked car.

Turn Indicator Bulb Replaced

Yesterday evening, the turn signal indicator for the right side suddenly began to toggle nervously twice as fast as normal - and I realised that the front bulb had gone. Bought one today at Halfords. Was not quite sure how to fix it, so I paid the £3.99 fee and let them do it. And it was more complicated than I had thought: it needed to be done from under the front wing, where the wheel is located. It took the guy almost half an hour! Good that I did not attempt this myself. The engineers/designers at Peugeot appear not to have the bulb changing procedure thought through a lot.

Planning the Electrical Circuits

Mr.Percy has already a functioning electric system. There is a reasonable leisure battery with 110 Ah capacity, and it is connected through a TEC3M relay to the main battery. The seller had already demonstrated the water pump, which worked fine. There are also two 12V ceiling lights, but only one of them is working. Upon closer inspection I noticed that the wiring for the second light is not connected. These lights give not a very pleasant light, and they probably use a lot of power. Therefore I decided that I would put LED lighting in the vehicle.

Maplin had a set of LED strip lights on sale, so I got three of them, including the extension. Each of those would use a total of 2 A at 12 V, which would actually be quite significant. But I tried and ran them at 9V only, and this worked fine, reducing the power requirements by approximately half.

The cabling appears not to have been done very professionally. In my opinion, the cable width is far too low; one would need good thick cables to avoid voltage drops. I am planning to redo most of the electric wiring, once I have some more time.

eBay has a lot of vendors which sell very interesting devices: combined volt/-amperemeter, voltage stabilisors, thermometers, etc. I purchased a few things, many of them quite cheap from Hongkong, Taiwan, Singapore, and China.
